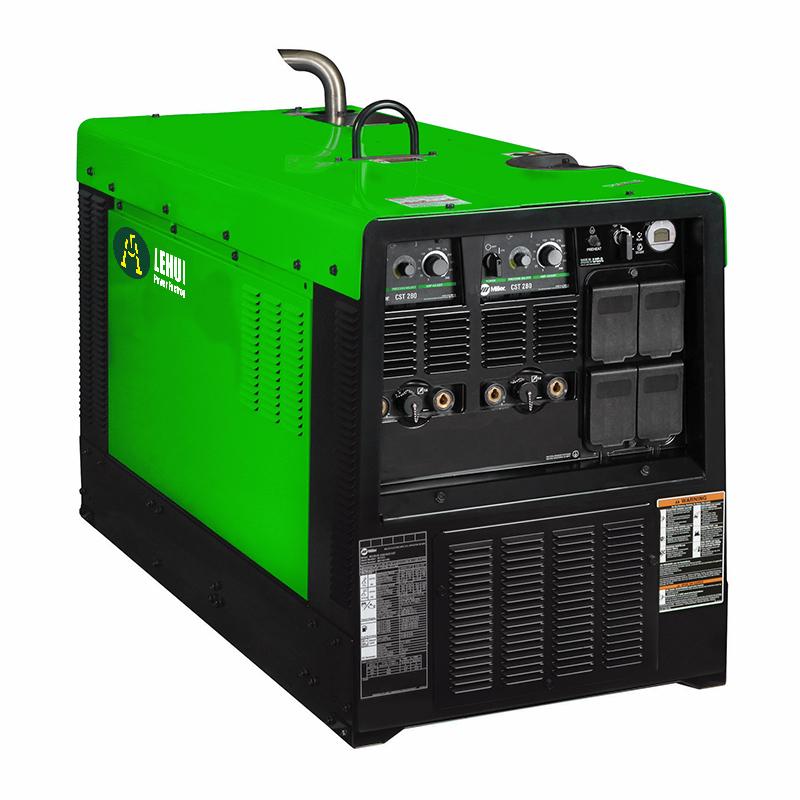

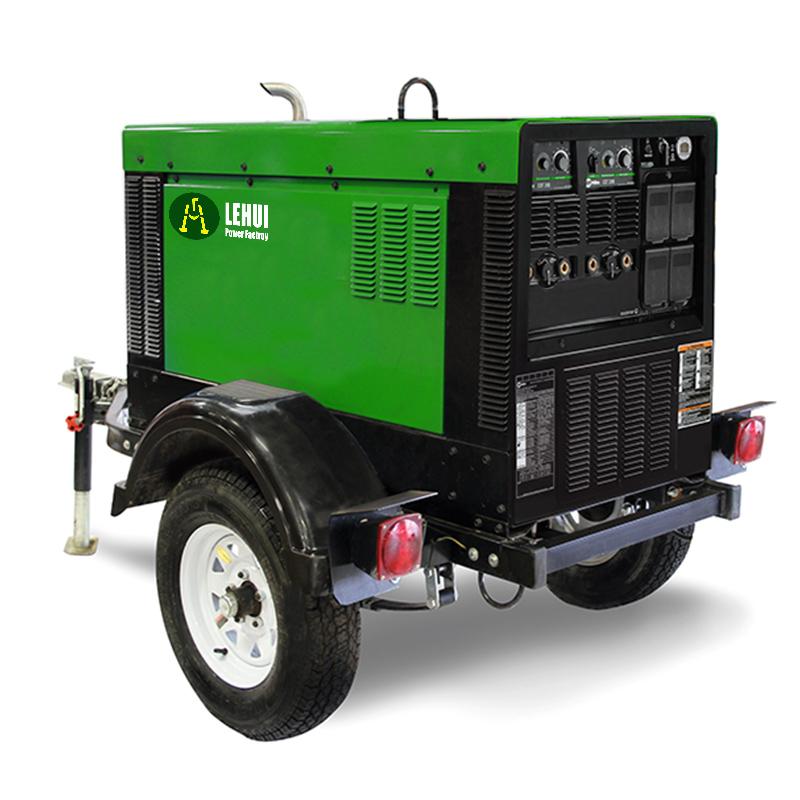

Tackle demanding industrial jobs anywhere with our top-rated 36KW 500 amp portable welding machine. Delivering robust, professional-grade power in a genuinely mobile package, this high-performance welder handles thick materials with ease. Its exceptional 500-amp output ensures deep penetration and strong, clean welds consistently. Built rugged for shop or remote site use, it offers unmatched portability without sacrificing serious capability. Ideal for heavy fabrication, construction, pipeline work, and field repair.
PRP kW/kVA: 28KW
ESP kW/kVA: 30KW
Engine: WP2.3D40
Fule cons L/H(100%):7.4L/H
Model:
LH W500100KW solar electrical energy storage systems
As your trusted industrial equipment supplier, we deliver high quality 36KW 500 amp portable welding machines. Engineered for demanding professionals, this powerhouse offers unmatched 500-amp mobility for thick metal fabrication, construction, and field repair.
Specifications:
| WELDING MACHINE REQUIRED | UNIT/requirement | ||||
| PARAMETERS | |||||
| Model | LH W500 | ||||
| Weld output range Rated Welding Output(Amps) | 500 Amps 30 volts dc @40% duty cycle, IEC rating 400 Amps 36 volts DC@100% duty cycle, 450 Amps 38 volt dc@ 60% duty cycle, | ||||
| Duty Cycle | Continuous | ||||
| Operating Weight | Kg/ton | ||||
| Max open circuit voltage | 95 Volts | ||||
| Type of Welding Mode | CC/CV Stick welding(SMAW),Tig Welding(GTAW),Air Carbon Arc (CAC/A) cutting and Gouging, Mig Welding | ||||
| Generator Power rating | Single Phase 4KVA/KW ,34/17Amps, 120/240 volts ac /50/60 hertz/ three phase | ||||
| Engine | |||||
| Engine Make | Weichai | ||||
| Engine Model | WP2.3D40 | ||||
| Engine Capacity | KW Mech | ||||
| Engine kW(prime/standy) | 36kW/40kW | ||||
| Engine Emission Standards (Euro I,III or III) | NA | ||||
| Silencer (Roof Mount) | Roof Mount | ||||
| Spark Arrestor (Roof Mount) | Roof Mount with rain cap | ||||
| Engine Cooling System | Water Cooled | ||||
| Fuel Type | Diesel | ||||
| Fuel Tank Capacity for 24 hours opertion | 80Lt s | ||||
| Fuel Consumption 100% Load | 7.4Lt/hr | ||||
| Air Intake Shutdown | NA | ||||
| Engine operating Ambient Temp | 55 degree centigrade | ||||
| Engine oil drain pump or hose with valve and drain hose | NA | ||||
| Engine Safety Shutdown | Engine High temp / low oil pressure /fan belt broken/Emergency switch | ||||
| Alternator | |||||
| Model/brand | S184G28E11 | ||||
| Genset Output (kw) | 28KW@50HZ, 28KW@60HZ | ||||
| Phase number | three phase | ||||
| Frequency | 50HZ/60HZ | ||||
| Voltage output | AC 380 V(optional: 208, 220/230/240, 380/400, 460/480 or 575 Volt) | ||||
| Insulation | H 23 | ||||
| Type of bearing/Brush | Single /Brushless Self excitation | ||||
————
