This Hydraulic light tower can be raised to 9M and equipped with 350W LED energy-saving light. The engine can be selected from Yanmar/Perkins/Kubota/Kohler engine. Suitable for construction sites, parking lots and outdoor spaces, etc.
PRP kW/kVA: 6.4 / 7.2
ESP kW/kVA: 7 / 9
Engine: Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105
Fule cons L/H(100%): 0.6 / 1.6
Model:

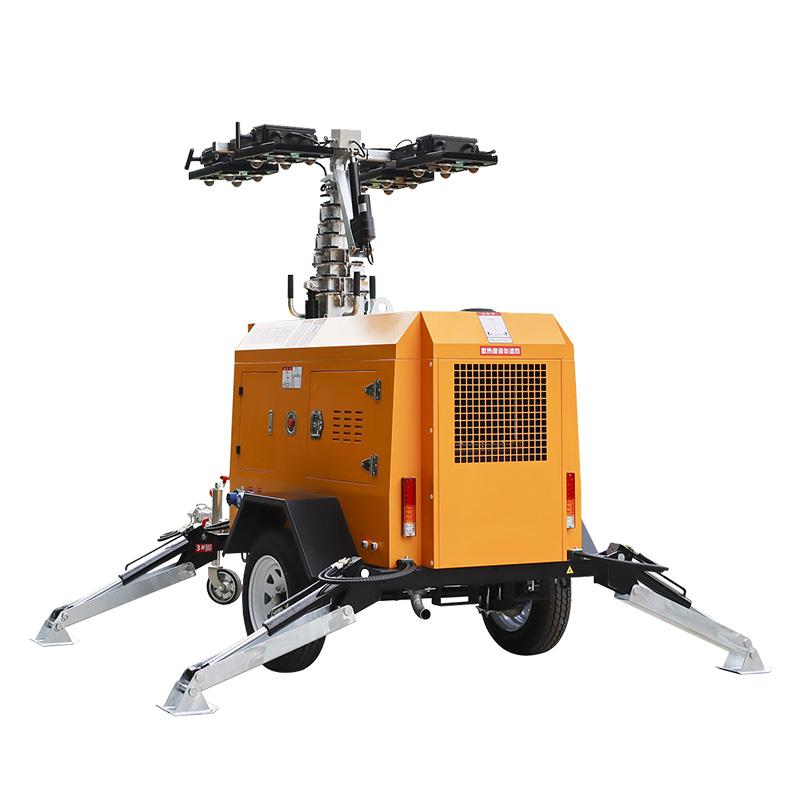

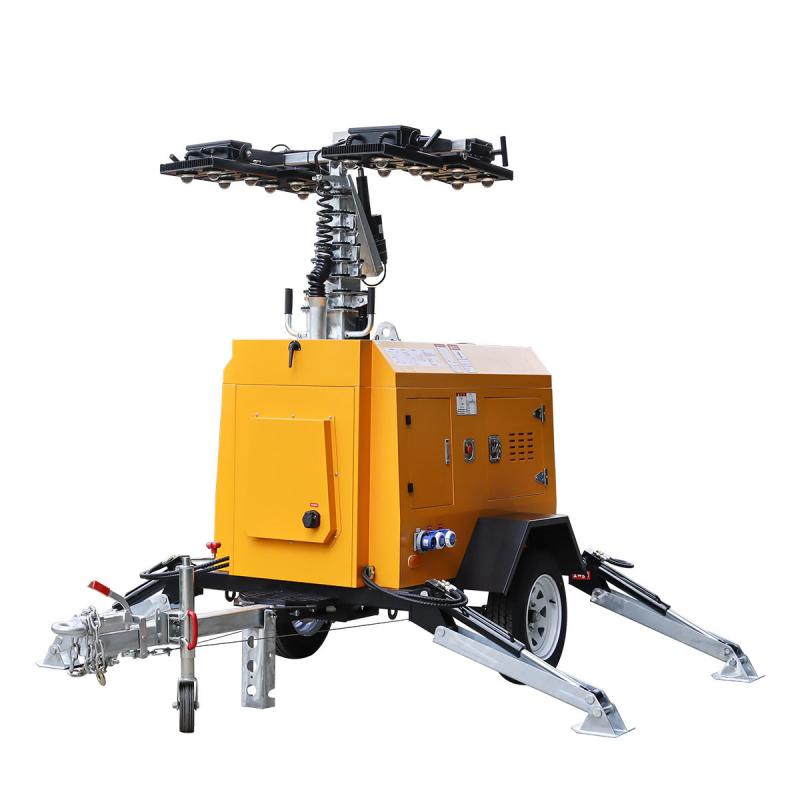

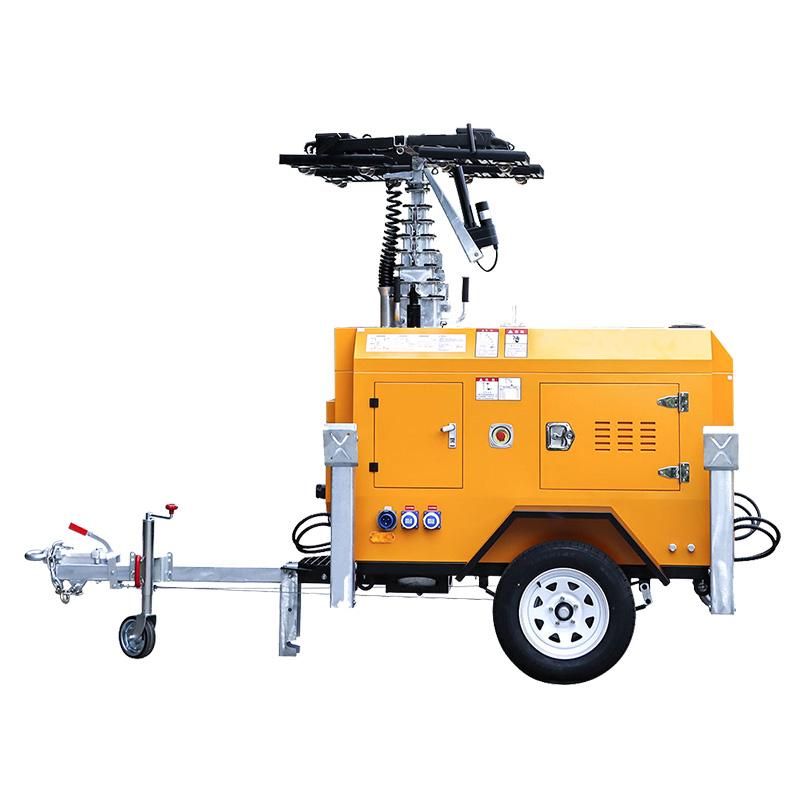

KLT-10000V350w 9M Led light Hydraulic light tower
Lehui's 9-meter 350w Led light Hydraulic light tower is equipped with 4* 350W LED lights + 4* 1000W metal halide lamps, 360° adjustable, and a wider lighting coverage.
Reliable diesel power combined with professional-grade lighting, using a powerful hydraulic lifting system and dual lighting technology, a smooth hydraulic lifting mechanism, and a stable base design, can provide good lighting for construction sites, parking lots and outdoor spaces, road construction and maintenance, mining industry and remote areas.
It can work properly even in bad weather. The Hydraulic light tower product is CE/ISO9001 certified. It has received 5-star praise from domestic and foreign customers.
IP65 waterproof level to cope with bad weather
MOQ: 1 unit
| Data details: | |
| Brand/Model | KLT-10000 V |
| Type/Lamps (no.*w) | LED - 4*350W / MH 1000W*4 |
| Genset Output (kva/kw) | 7kav@50HZ / 9KVA@60HZ |
| Fuel tank Capacity(L) | 100 |
| Fuel consumption(L/H) | 0.6 / 1.6 |
| Mast operating mode | Vertical Hydraulic |
| Towing Type | Ring or Ball hitch |
| Loading | 10 units in 20'GP/20 units in 40'HQ |
| Engine | |
| Brand/Model | Perkins 403-11 /Yanmar 3tnv76-GGE /Kubota 1105 |
| Number of Cylinders/Stroke | 3 cylinders in line,Air cooled,Four stroke |
| Fuel/Cooling | Diesel/water |
| Output Rate（KW） | 8.4KW@50HZ / 9.5KW@60HZ |
| Revolution(RPM) | 1500 / 1800 |
| Alternator | |
| Model/brand | KAL-164 |
| Genset Output (kva/kw) | 7kav@50HZ / 9KVA@60HZ |
| Phase number | Single Phase |
| Frequency | 50HZ |
| Voltage output | AC 110V-240V |
| Insulation | H 23 |
| Type of bearing/Brush | Single/Brushless Self excitation |
| Lighting | |
| Lamp type | LED lamp / Metal Halide |
| Lamp No.*W | 4×350W / 4*1000W |
| Lumens | 210000 / 440000 |
| Housing Materials | Aluminum |
| Mast Tower | |
| Type | Hydraulic Multi-Sections Telescoping mast |
| Total Height | 8M |
| Rotation | 360 Degree |
| Mast Sections | Multi Sections |
| Trailer and canopy | |
| Outriggers | With 4 points hydraulic outriggers extended |
| Wheel and Rim | 185R/14'' or 165R/13'' |
| Trailer Suspension System | Steel plate spring |
| Towing Type | Ring or Ball hitch |
| Canopy | Rainproof with two doors access for easy maintenance. |
| Fork pocket and central lift point | YES |
| Auxliary sockets | AC 2*16A |
| Control system | |
| Controller | Smartgen 1790 |
| Individual lamp switch on/off | YES |
| Automatic dark/dawn on/off(Night Sensor) | YES |
| Power plug in charger(City power charging function) | YES |
| Electric | CHINT circuit breaker / Emergency Stop |
| Connection protection | IP65 |
| Engine shutdown protection | Low oil pressure, Hight water tempreture |
